Custom Form Control

Requirements

Supported Environments

• Private deployment
• SAAS

ONES System Version

v6.90.0+

ONES CLI Version

v1.70.1+

npm install -g @ones/cli --registry=https://npm.partner.ones.cn/registry/
ones --version
1.70.1

Capability Overview

This document describes how to add a custom form control to the work item detail form, create form, and transition form via feature extensions.

Extension Configuration

Configuration

Add the following configuration to config/plugin.yaml.

oauth:
  type:
    - user
  scope:
    - read:project:issueField
extension:
  - formControlExtension:
      provider: smsprov2
      slots:
        - name: ones:form:control:content
          entryUrl: modules/ones-form-control-content-nLtK/index.html
        - name: ones:form:control:settings
          entryUrl: modules/ones-form-control-settings-71OJ/index.html
      config:
        name: Custom control name
        fieldUUIDs:
          - 9ax9ExKt
          - M3Fgzu3F
          - EGx9jsaH
          - LS5aqwaW
        supportForms:
          - detail
          - create
          - transition
        controlTips: Control description

Note: The oauth-related configuration is mainly related to the Open API. Configure the plugin as needed. See the documentation: Open API

Slot Description

Plugin Name	Description
ones:form:control:content	The slot where the custom form control renders its content in the form.
ones:form:control:settings	The slot to implement custom settings in the form editor. If custom settings are not needed, omit this.

config Field Description

Field	Type	Description
name	string	Custom form control name
fieldUUIDs	string[]	List of fields included in the custom form control
supportForms	"detail" | "create" | "transition"	Forms supported by the custom control. Currently only three (detail, create, transition). create requires detail.
controlTips	string	Control description shown in the form editor. Optional.

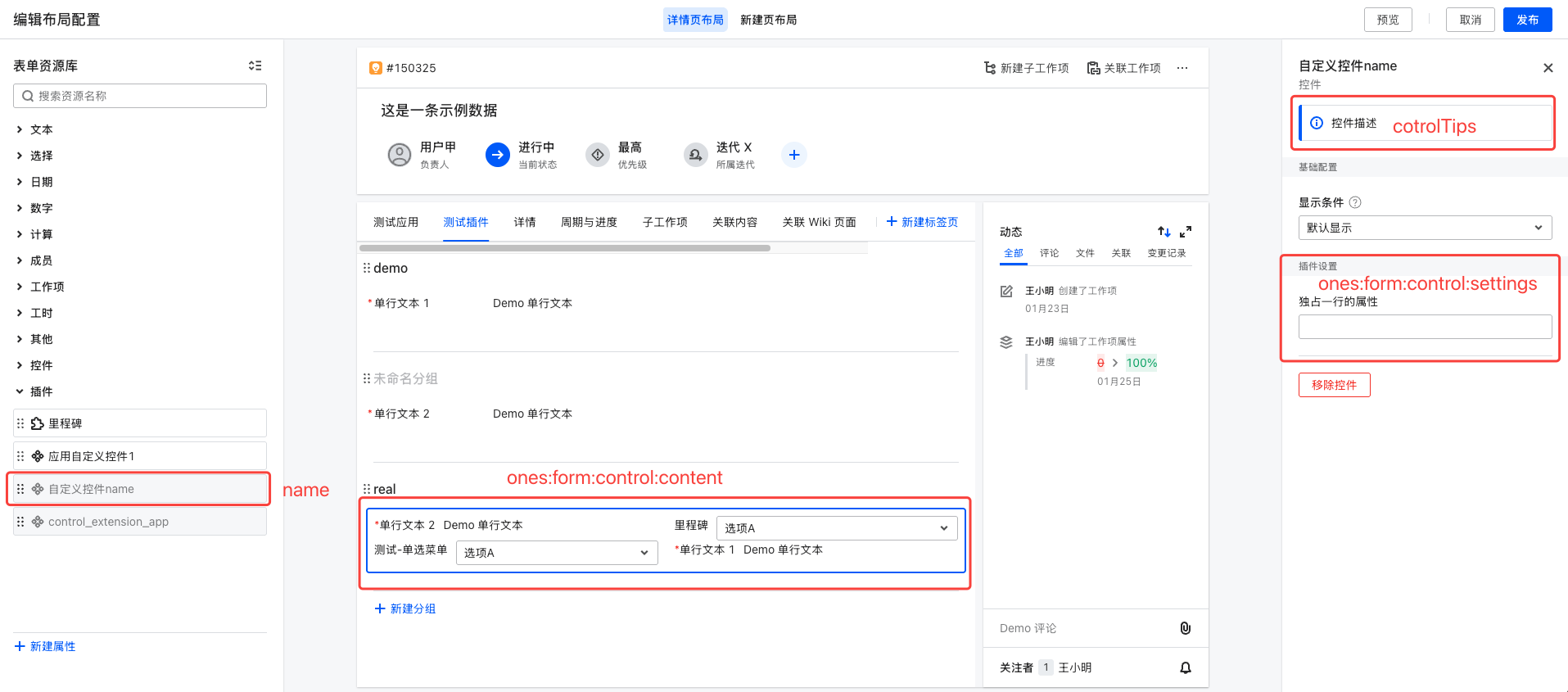

Example

Frontend Implementation

Custom Form Control Content Slot

1. Create the entry file for rendering the slot content: web/src/modules/ones-form-control-content-nLtK/index.tsx.

import React from 'react'
import ReactDOM from 'react-dom'
import { ConfigProvider } from '@ones-design/core'
import { lifecycle, OPProvider } from '@ones-op/bridge'
import './index.css'
import { ControlContentExtension } from './control_content_extension'


ReactDOM.render(
  <ConfigProvider>
    <OPProvider>
     <ControlContentExtension/>
    </OPProvider>
  </ConfigProvider>,
  document.getElementById('ones-mf-root'),
)

lifecycle.onDestroy(() => {
  ReactDOM.unmountComponentAtNode(document.getElementById('ones-mf-root') as HTMLElement)
})

2. Implement the ControlContentExtension component.

import React, { useEffect } from 'react'
import type { FC } from 'react'
import { useExtensionContext, useExtensionConfig } from '@ones-op/sdk'

export const ControlContentExtension: FC = () => {
  // Inside the plugin, call useExtensionContext to obtain the context passed by the product.
  // Call useExtensionConfig to obtain the plugin configuration.
  const extensionContext = useExtensionContext()
  const extensionConfig = useExtensionConfig()

  const {
    fields,
    fieldsConfig,
    ctx,
    values,
    onSubmit,
    onPermissionDenied,
    type,
    inEditor,
    onChange,
    settings,
  } = extensionContext

  return <div>your business logic</div>
}

3. extensionContext Parameter Description

Field	Type	Description	Detail Form	Create Form	Transition Form
name	string	Custom form control name	✅	✅	✅
inEditor	boolean	Whether it is in the form editor	✅	✅	✅
type	"detail" | "create" | "transition"	Current form type	✅	✅	✅
fields	IField[]	Basic field information	✅	✅	✅
fieldsConfig	Record<string, FieldConfig>	Field configuration in the form, including: visible, required, placeholder, hasPermission	✅	✅	✅
values	Record<string, any>	Field values in the form	✅	✅	✅
settings	Record<string, any>	Configuration of the custom control on the form	✅	✅	✅
ctx	ControlContentExtensionContext	Context information	✅	✅	✅
onPermissionDenied	(fieldUUID: string) => void	Shows a toast for lack of permission by fieldUUID; handled by product	✅
onSubmit	(values: Record<string, { value: unknown; submitType?: SubmitTypeEnum }> ) => Promise<void>	Callback to submit data	✅
onChange	(value: Record<string, any>) => void;	Callback when data changes in create/transition forms		✅	✅

ControlContentExtensionContext Type

export interface ControlContentExtensionContext {
  taskUUID?: string // Work item UUID; provided only in detail and transition forms
  projectUUID?: string // Project UUID
  issueTypeUUID?: string // Work item type UUID
  taskDetailViewMode?: TaskDetailViewMode // Work item detail layout; only provided in detail form
  taskStatus?: TaskStatus // Work item status; detail form only
  transitionUUID?: string // Transition UUID; only available in transition form
  formValues?: Record<string, any> // Form values; only in create and transition forms
}

export enum TaskDetailViewMode {
  Wide = 'wide', // Wide detail layout
  Narrow = 'narrow', // Narrow detail layout
}
export interface TaskStatus {
  uuid: string
  category: string
  name: string
}

4. Flow Description:

   Detail form: Call onSubmit with the data edited inside the custom control. After listening to onSubmit, the ONES will call the update API with the received parameters to update work item fields.

   Create and transition forms: Call onChange with the data edited inside the custom control. The ONES listens to onChange, saves the received values into the form, and submits all data together when the confirm button is clicked.

Custom Form Control Settings Slot

1. Create the entry file for the custom settings slot: web/src/modules/ones-form-control-settings-71OJ/index.tsx.

import React from 'react'
import ReactDOM from 'react-dom'
import { ConfigProvider } from '@ones-design/core'
import { lifecycle, OPProvider } from '@ones-op/bridge'
import { ControlSettingsExtension } from './control_settings_extension'
import './index.css'

ReactDOM.render(
  <ConfigProvider>
    <OPProvider>
     <ControlSettingsExtension  />
    </OPProvider>
  </ConfigProvider>,
  document.getElementById('ones-mf-root'),
)

lifecycle.onDestroy(() => {
  ReactDOM.unmountComponentAtNode(document.getElementById('ones-mf-root') as HTMLElement)
})

2. Implement the ControlSettingsExtension component.

import React, { useEffect } from 'react'
import type { FC } from 'react'
import { useExtensionContext, useExtensionConfig } from '@ones-op/sdk'

export const ControlSettingsExtension: FC = () => {
  // Inside the plugin, call useExtensionContext to obtain the context passed by the ONES.
  // Call useExtensionConfig to obtain the plugin configuration.
  const extensionContext = useExtensionContext()
  const extensionConfig = useExtensionConfig()
  return <div>your business logic</div>
}

3. extensionContext Parameter Description

Name	Type	Description
name	string	Plugin name
type	'detail' | 'create' | 'transition'	Form type
fields	IField[]	Basic field information
value	Record<string, any>	Previously saved settings
ctx	ControlSettingsExtensionContext	Context information
onChange	(value: Record<string, any>) => Promise<void>	Callback on settings change

ControlSettingsExtensionContext Type

export interface ControlSettingsExtensionContext {
  projectUUID?: string // Project UUID
  issueTypeUUID?: string // Work item type UUID
  transitionUUID?: string // Transition UUID; only available in transition forms
}

5. Flow Description:

The plugin passes the edited data back to the ONES via onChange. The ONES listens to onChange and saves the received parameters into the form configuration. During rendering, the configuration is read and passed to the plugin via the settings field.
